Industrial Ro - 5000 LPH

HomeIndustrial RO  Industrial Ro - 5000 LPH

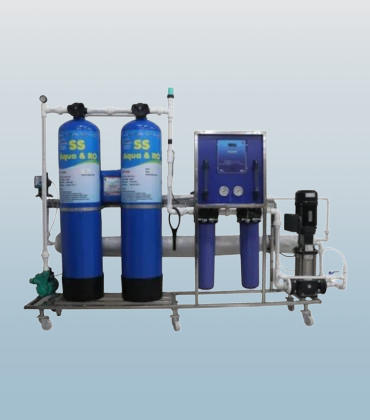

5000 LPH RO Plant Image

5000 LPH RO Plant

Category: Industrial RO
₹8,50,000 / piece
Get a Quote on

Description

Reverse Osmosis (RO) is a process of physical separation of dissolved solids and minerals present in water. This technology uses the principle of osmosis, wherein the mineral concentration of raw water is reduced by applying high pressure through a semi-permeable membrane. RO technology offers maximum flexibility to meet diverse requirements. Our customised software, INDIAN helps customers gain the maximum ‘RO Advantage’, by helping to make the right selection. INDIAN considers your inlet water quality and capacity requirements and offers you optimised combination. This choice is dependent on different flux rates, pump models, membrane types and inlet water quality.

Additional Information

  • Item Code: NAM5000LPH
  • Production Capacity: 5000 LPH
  • Delivery Time: 7 day

Specifications

Specification Details
Capacity 5000 LPH
Purification Type Reverse Osmosis (7-Stage)
Water Source Borewell
Input TDS 1000–2000 ppm
Inlet TSS 1000–2000 ppm
Inlet Flow Rate 10000 LPH
Purification Capacity 5000 LPH
Water Storage Capacity 10000 Litres
Recovery Rate 60–65%
Membrane Type 80/40
No. of RO Membranes 5
Filter Cartridges 0.5 Micron
No. of Filtration Passes 7
Plant Accessories Ozonator, UV Lamp
Post Treatment Post Carbon, GAC Filter, Sediment CTZ, Micron PP
RO Membrane Yes
Material FRP
Automation Grade Automatic
Model Name/Number NAM5000LPH
Motor 5 kW
Voltage 440V
High Pressure Pump Type 10/18
High Pressure Pump CNP / Lubi / Shakti
Power Source Electric
Power Consumption 9 HP
ACF Capacity 350 KG
Raw Water Feed Pump Flow Rate 10000 LPH
Capacity Inlet Flow Rate 10000 LPH
Phase Three Phase
Control Panel 1
Certification ISI
Mounting Type SS Stand
Color Silver and Blue
Types Of Machines Automatic RO System
Usage/Application Institutional / Industrial
Installation Type Containerized Plug & Play
Installation Services Required Yes
Deliver Type Pan India
Manufacturing Lead Time 1 Day
Warranty 1 Year
Weight 500 to 700 KG
Maximum Duty Cycle 10 Years
Area Available Of Plant Installation 200 sq. ft.
Features Best configuration / Full automatic
Country of Origin Made in India
Min Order Quantity 1
